smochm multifunction Android 11 motherboard for medical device, education, finance equipment, digital signage
Product Description
High end ARM Industrial Android motherboard Android 11 ARM computing control board for medicine KIOSK Digital signage finance
features:
1.lots of interfaces available
2.small size design
3.multifunction, this motherboard can be applied in medical device, retail, kiosk, digital signage, finance equipment
support I2C NFC function with smochm NFC module
|

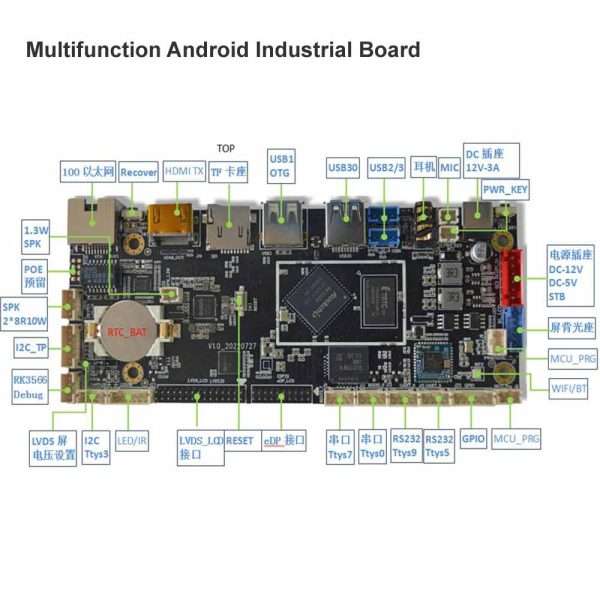

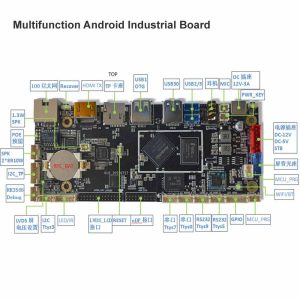

Parameters |
||
| motherboard size | 152mm*63mm, thickness 1.6mm | |
| CPU | RK3566, qual core A56，max frequency 1.8GHz | |
| GPU | qua core Mali-G52 GPU | |
| operation system | Android 11 | |
| memory/storage | default 2G（4G option）/ default 16G（16G/32G/64G options） | |
| TF card | support to extend storage | |
| MIPI output | directly drive many MIPI lcd display | |
| LVDS output | 1 LVDS, directly drive 1920X1080 lcd display | |
| eDP output | directly drive 1920×1080 edp display | |
| HDMI output | max resolution：4096×2304@60Hz | |
| vide formats support | wmv、avi、flv、rm、rmvb、mpeg 、ts 、mp4 | |
| image formats support | support BMP、JPEG、PNG、GIF | |
| AUDIO | SPEAKERS（support left and right two channel 2*8R/10W amplifier）、MIC IN | |
| USB interface | 1 USB2.0 OTG ，1 USB3.0 Host +2 USB2.0 HOST | |
| COM interface | 2 RS232，3 TTL，1 DEBUG、1 IIC，4 GPIO ，1 ADC， 1 IR | |
| WIFI、BT | built in WIFI，BT4.0 （option）support 2.4G WIFI，antenna (2.4G+5G option) | |
| Ethernet | support 10/100M Ethernet interface | |
| RTC | support , support to customize power off schedule | |
| OS update | support local USB updating system | |
