Product Description

native NFC industrial Anadroid Board for Finance Kiosk Vending machine advertising machine support Native NFC

1.1 Application Scope

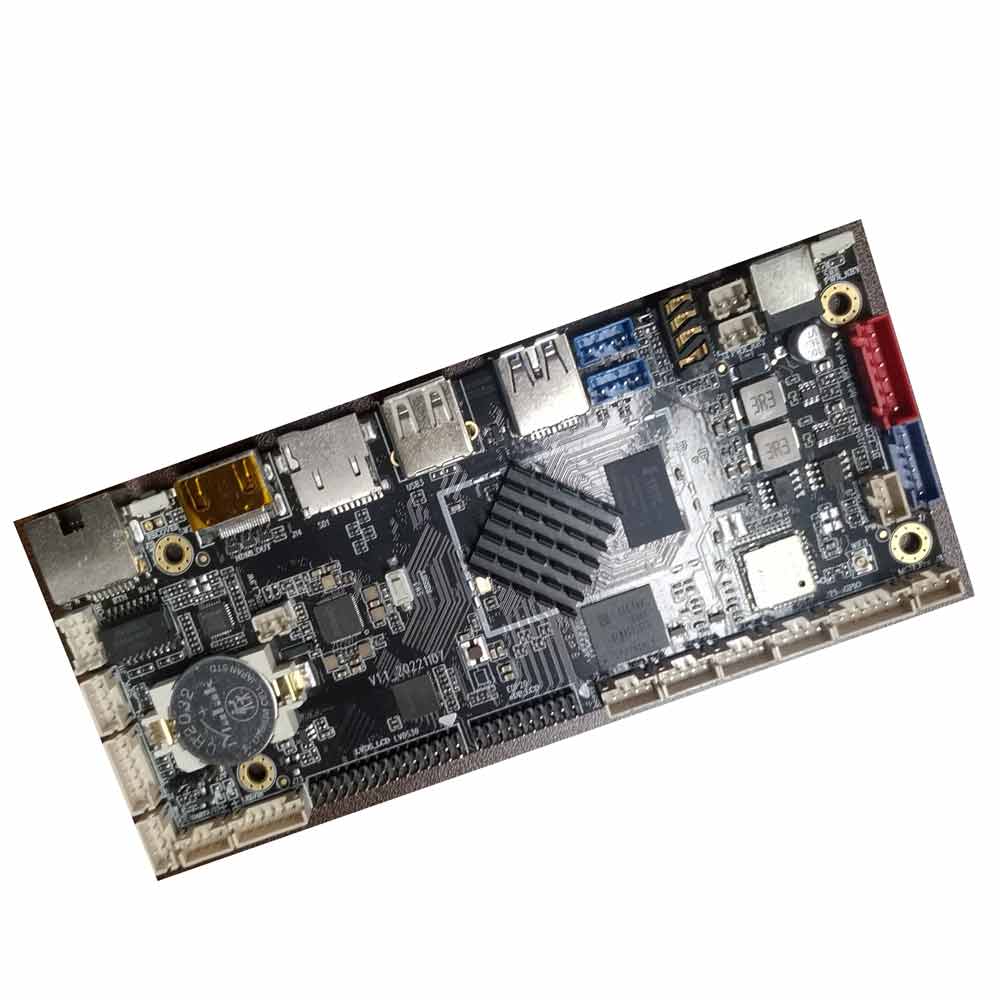

SM-BOARDM1 is a commercial display intelligent self-service terminal motherboard, commonly suitable for: interactive advertising players, interactive digital signage, intelligent self-service terminals, smart retail terminals, O2O smart devices, industrial PCs, robotic equipment, etc.

1.2 Product Overview

SM-BOARDM1 features the Rockchip RK3566 (quad-core Cortex-A55) six-core 64-bit powerful CPU, equipped with Android 11 system, and a maximum clock speed of 1.8 GHz. It uses the Mali-G52 GPU, supporting 1080P 60fps H.265/H.264 video encoding. It supports HDMI, LVDS, EDP, MIPI displays (single display), offering stronger performance, faster speed, and richer interfaces, making it the best choice for human-computer interaction, intelligent terminals, and industrial control projects.

1.3 Product Features

 RK3566 powerful CPU with Android 11 system, faster speed, stronger performance.

Supports 2.4G (optional 2.4G+5G) WIFI, single antenna.

 Network port design, supporting 100M network port.

 Rich expansion interfaces: 4 USB ports (1 USB2.0 OTG, 1 USB3.0 Host + 2 USB2.0), 5 expandable serial ports (3 TTL (1 compatible with I2C), 2 RS232), GPIO and ADC interfaces, meeting various market peripheral requirements.

 High definition. Supports up to 1080P 60fps H.265/H.264 video encoding, supports HDMI/LVDS/eDP/MIPI interface LCD displays, does not support dual screen independent display.

 Supports Android system customization, provides system call interface API reference code, perfectly supports customer upper-layer application APP development.

 Perfectly supports various mainstream touchscreens such as infrared, optical, capacitive, resistive, touch film, supports driver-free touchscreen HID configuration, no debugging required.
