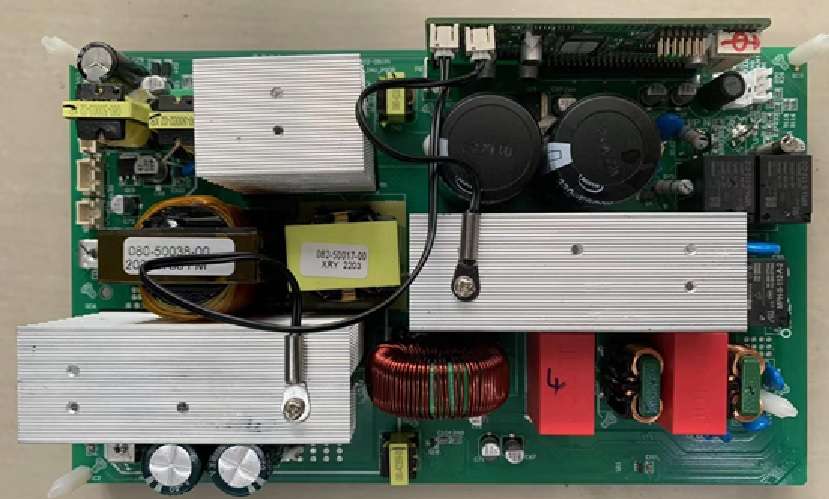

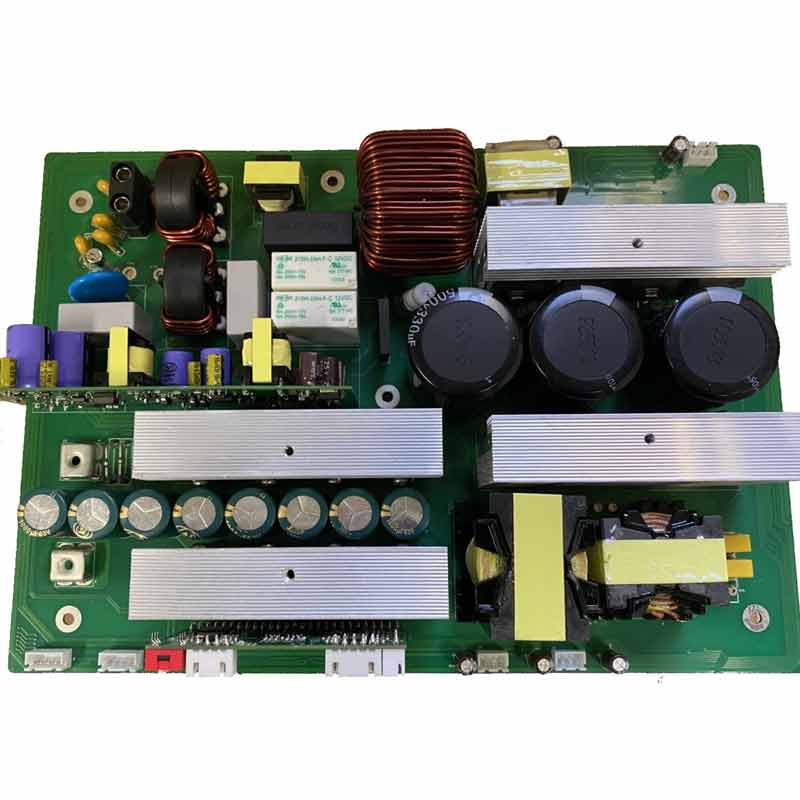

AC 230V to DC 24V bidirectional power inverter PCBA board
Product Description
230V AC to DC and DC to AC230V bidirectional output inverter motherboard PCBA
Model :PK 210-24H11RTDGV1000
Rated Power 1000VA/1000W
Peak Power 2000W
Machine Architecture Bi-directional AC-DC Inverter
Input and Output Phase Number Single Phase Input / Single Phase Output
Working Modes Automatic Charging: Connect to mains power for automatic battery charging.
Manual Inverter Discharge: Manually start the battery inverting AC output.
Uninterruptible Power Supply Mode: Mains AC supply, automatically switches to inverter power supply if mains fail (within 10ms)
Output Output Wiring Single phase two wires (L,N) + protective earth
Rated Voltage 230VAC
Output Voltage Accuracy ±10%
Output Frequency 50Hz±2 (adjustable to 60Hz±2)
Output Waveform Pure Sine Wave
Output Distortion (THDV%) <3% (linear load)
<8% (non-linear load)
Overload Capacity 102% to 135% constant power mode, drops below 187V to exit constant power mode
1 second @ 135%~150% rated load
0.2 seconds @ >150% rated load
Load Adaptability 40% rated power capacitive load, 60% rated power inductive load, 100% rated power resistive load
Efficiency Mains Charging (AC -> Battery) Full load 90%
Battery Discharging (Battery -> AC) Full load 90%
Standby Power <3W (on-sleep, no output)
<25W (with output no load)
Overtemperature Protection 80℃~90℃
Shutdown Leakage Current <100uA
Mains Input Input Wiring Single phase two wires (L,N) + protective earth
Low Voltage Trip Point 120VAC
Low Voltage Recovery Point 130VAC
High Voltage Trip Point 264VAC
High Voltage Recovery Point 254VAC
Charging Frequency Range 46Hz-64Hz
Bypass Frequency Range 47Hz~53Hz @50Hz
57Hz~63Hz @60Hz
Input Power Factor ≥0.95
Maximum Input Power 1200W
Battery and Charger Battery Rated Voltage 24V
Battery Type ① Recommended Lithium/Sealed Lead Acid
Charging Control Method Pre-charge, constant current, constant voltage, equalization charge, floating charge, cut-off
Charging Termination Voltage 25.2V / continuously adjustable
Discharge Termination Voltage 18V / continuously adjustable
Charging Current 35A / continuously adjustable
Pre-charge Current 2.5A
Charging Control Commands Charging termination voltage, charging current, charging enable, full charge detection, battery fault, battery temperature, charging mode switching
Protection Functions Overload protection, overtemperature protection, input overvoltage protection, input undervoltage protection, overcharge protection, overdischarge protection
Human-Machine Interface Communication Interfaces On/Off command interface, RS232 non-isolated TTL level
LCD Display (Optional) Displays input and output voltage, frequency, load percentage, working mode, machine status
Environmental Parameters Operating Temperature Range -10~45oC
Operating Humidity Range 0-98% (non-condensing)
Cooling Method Forced air cooling
Recommended Fan Specifications 8025mm 12V0.25A 3500RPM
Structural Shape Dimensions 14825050mm
Weight (Kg) 1.0kg
Insulation Isolation Withstand Voltage Battery to AC terminal: 3000VDC leakage current <10mA
Safety and EMC Standard IEC60950
