portable monitor to extend smart phone, laptop, computer and switch gaming devie.
Product Description

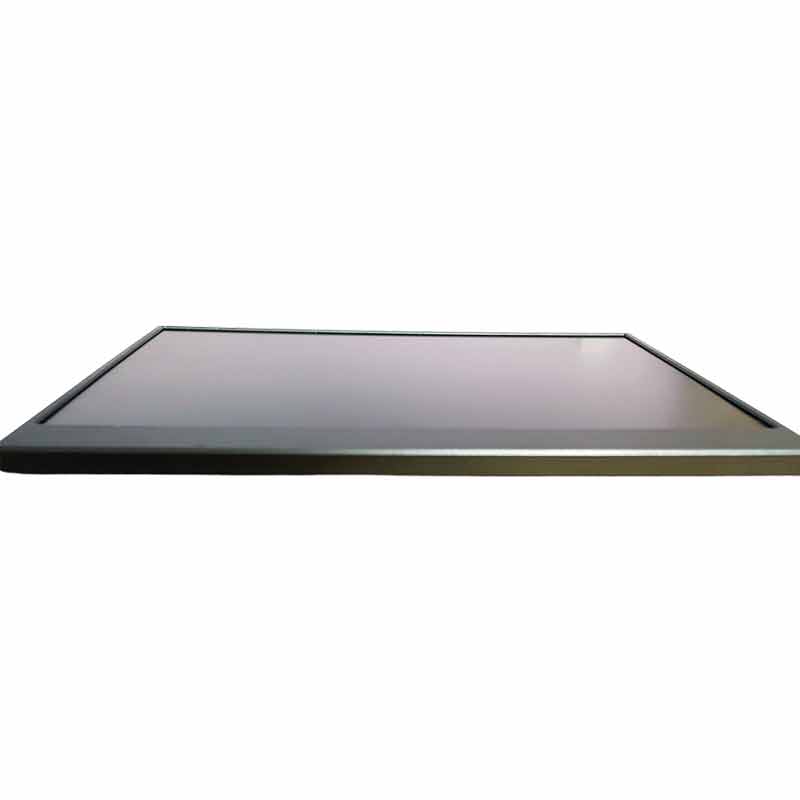

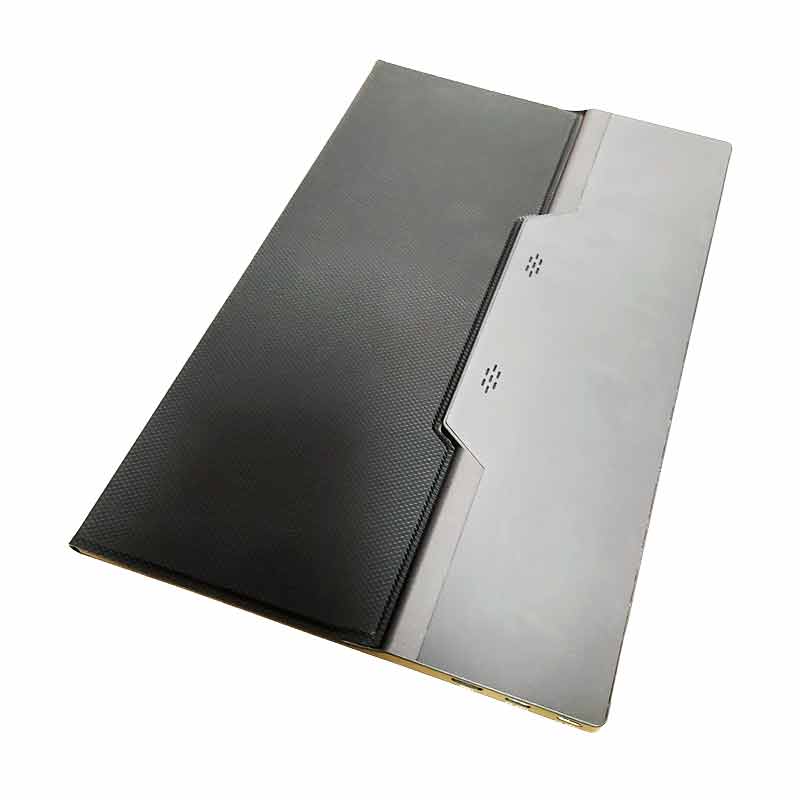

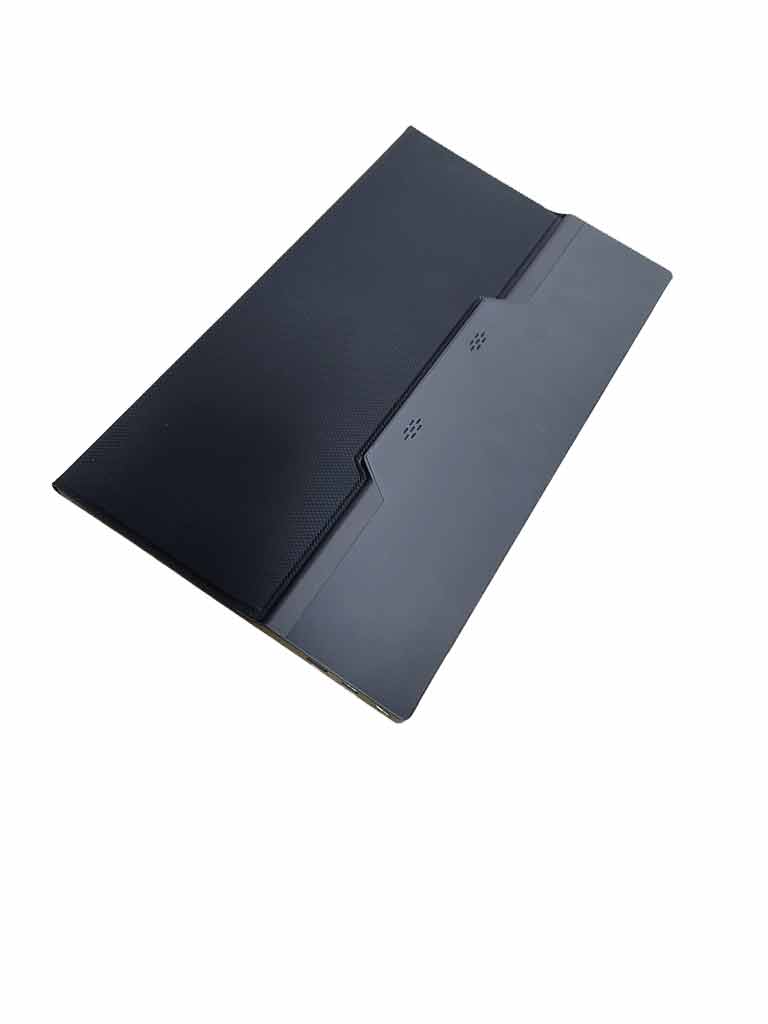

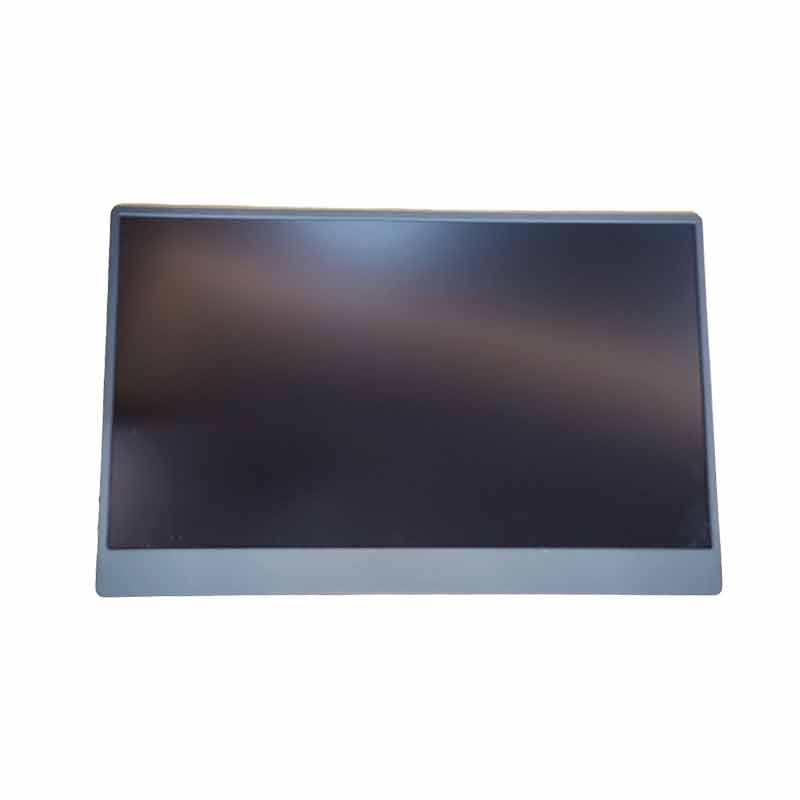

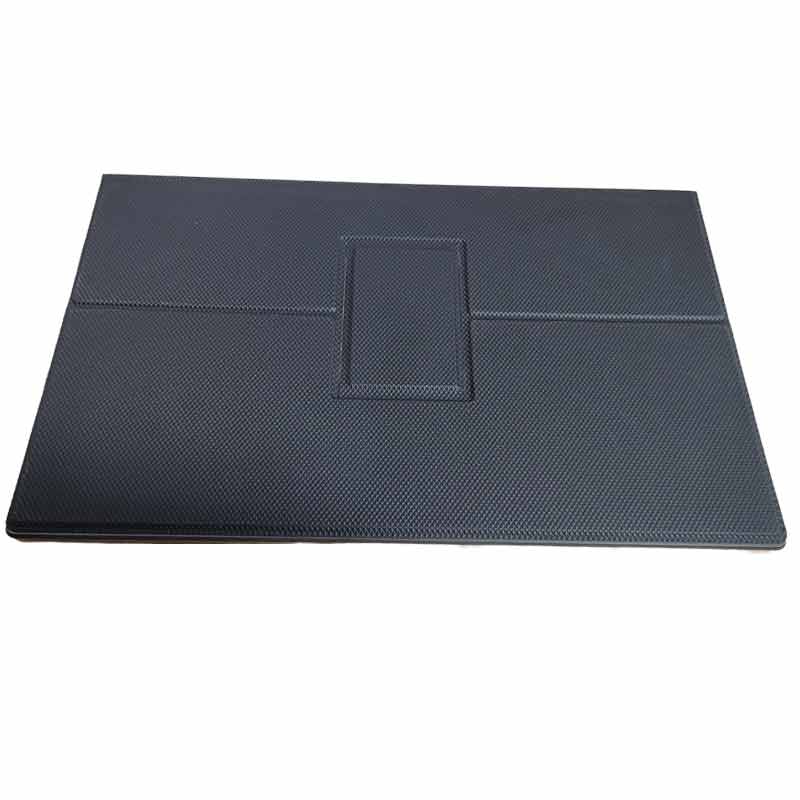

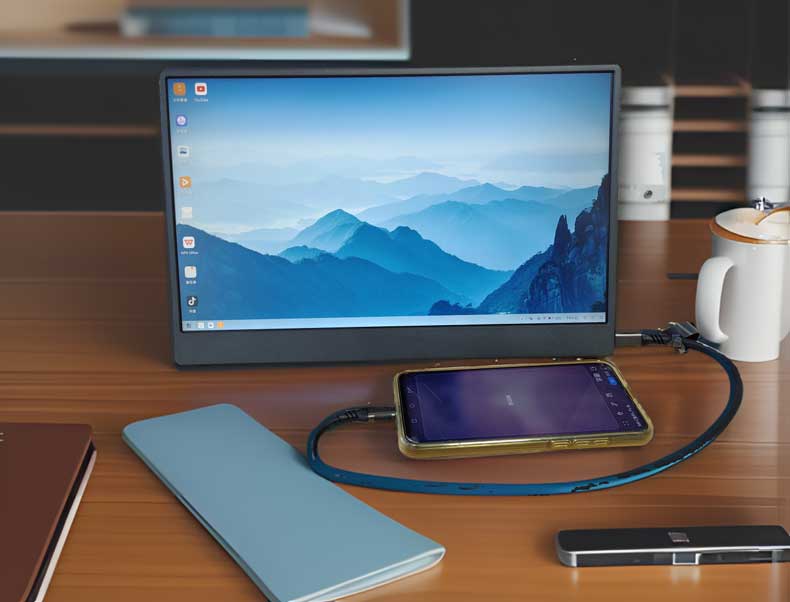

Extend your smart phone to bigger monitor screen with smochm portable monitor
portable monitor application

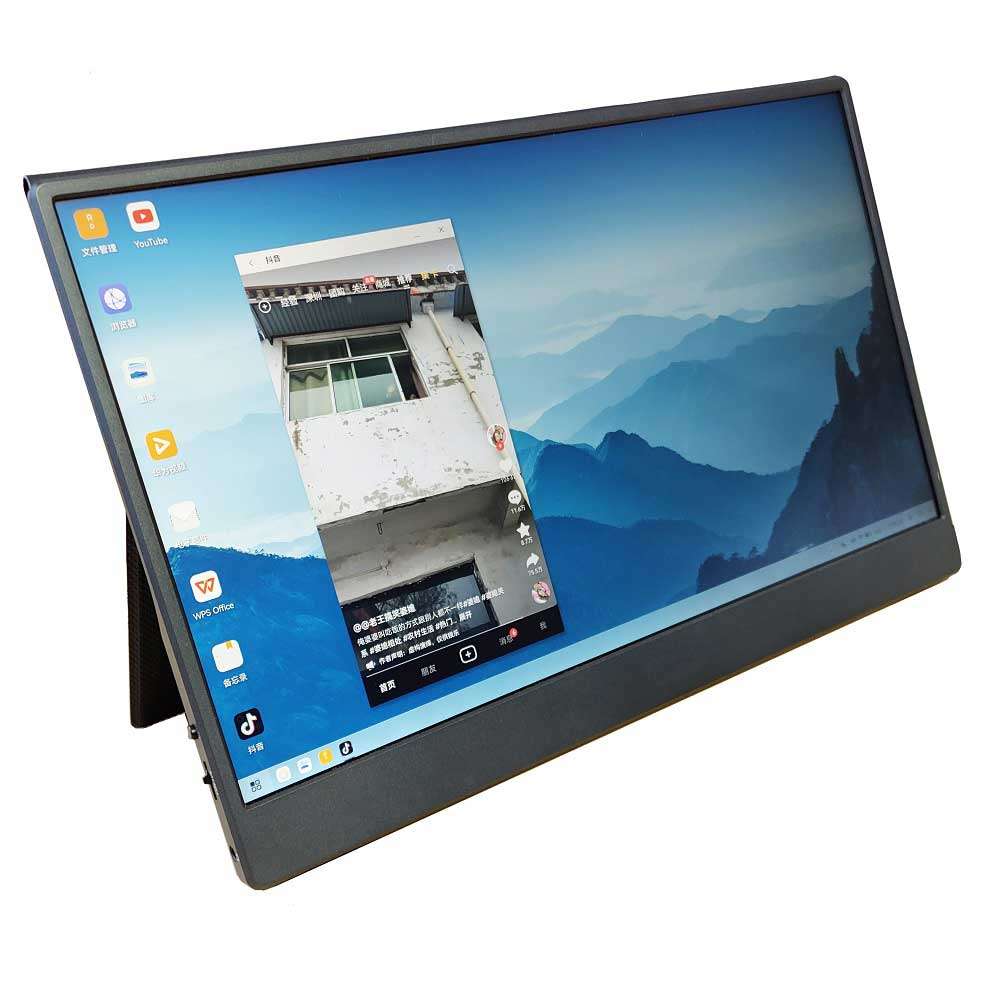

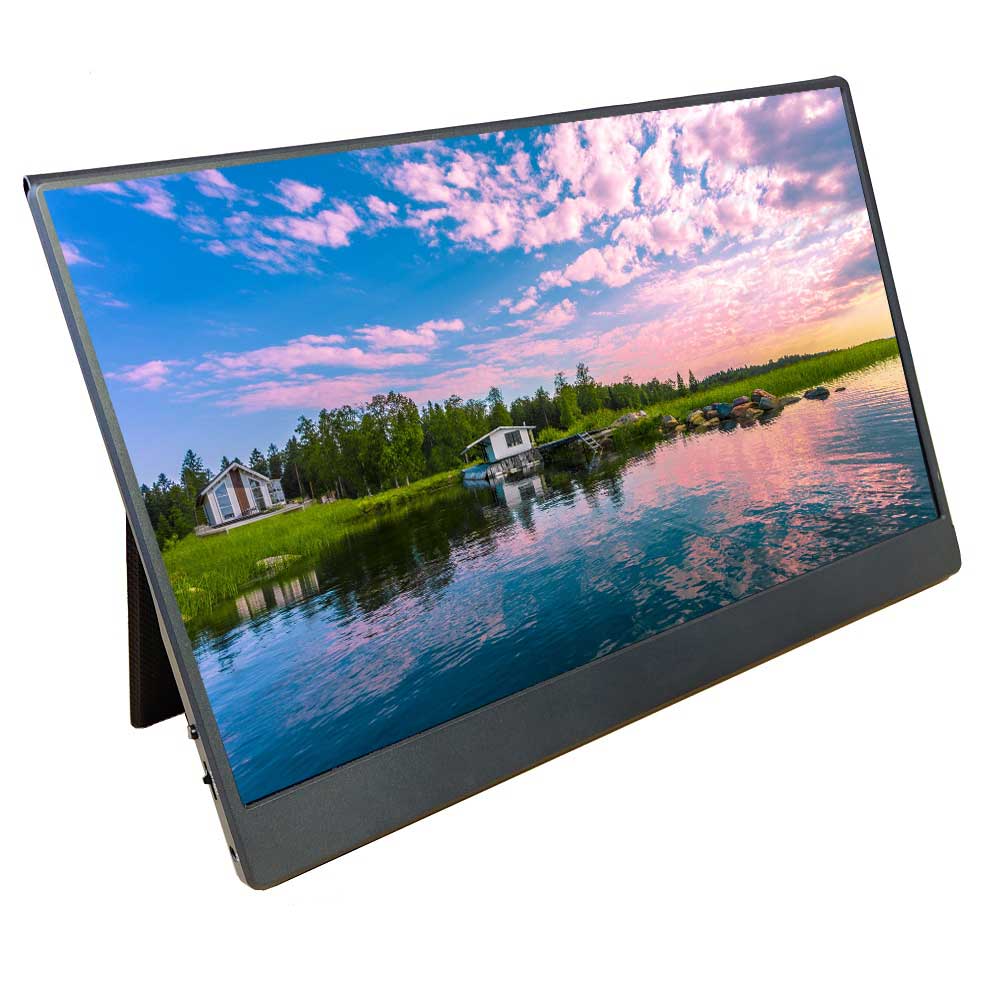

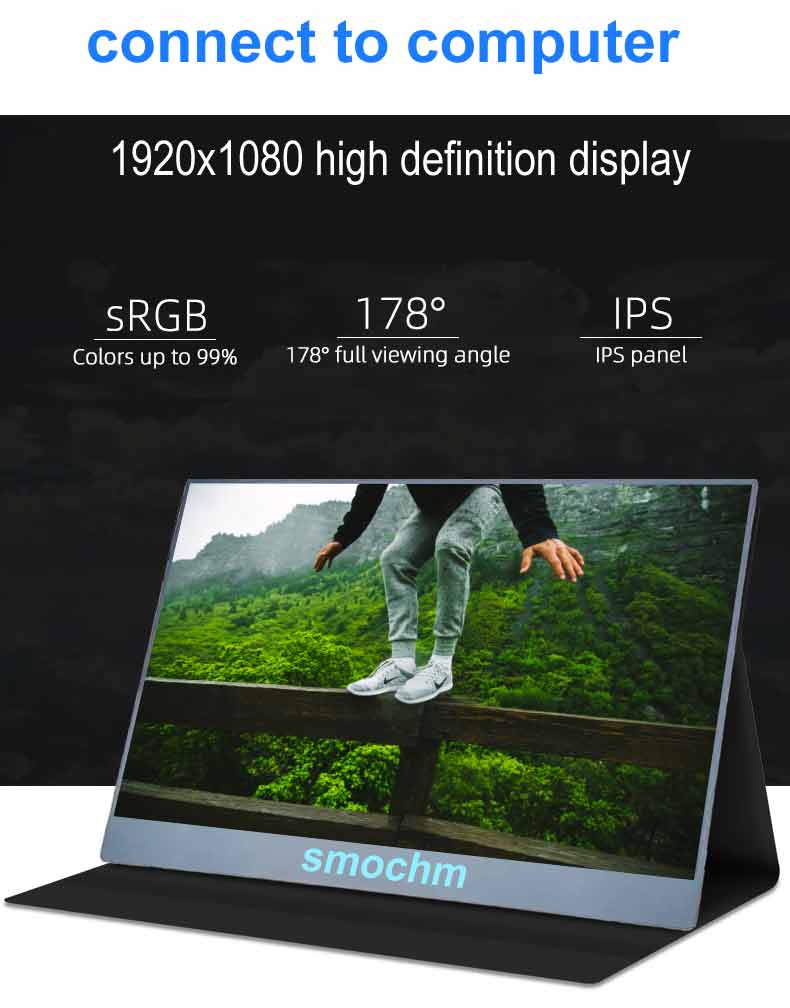

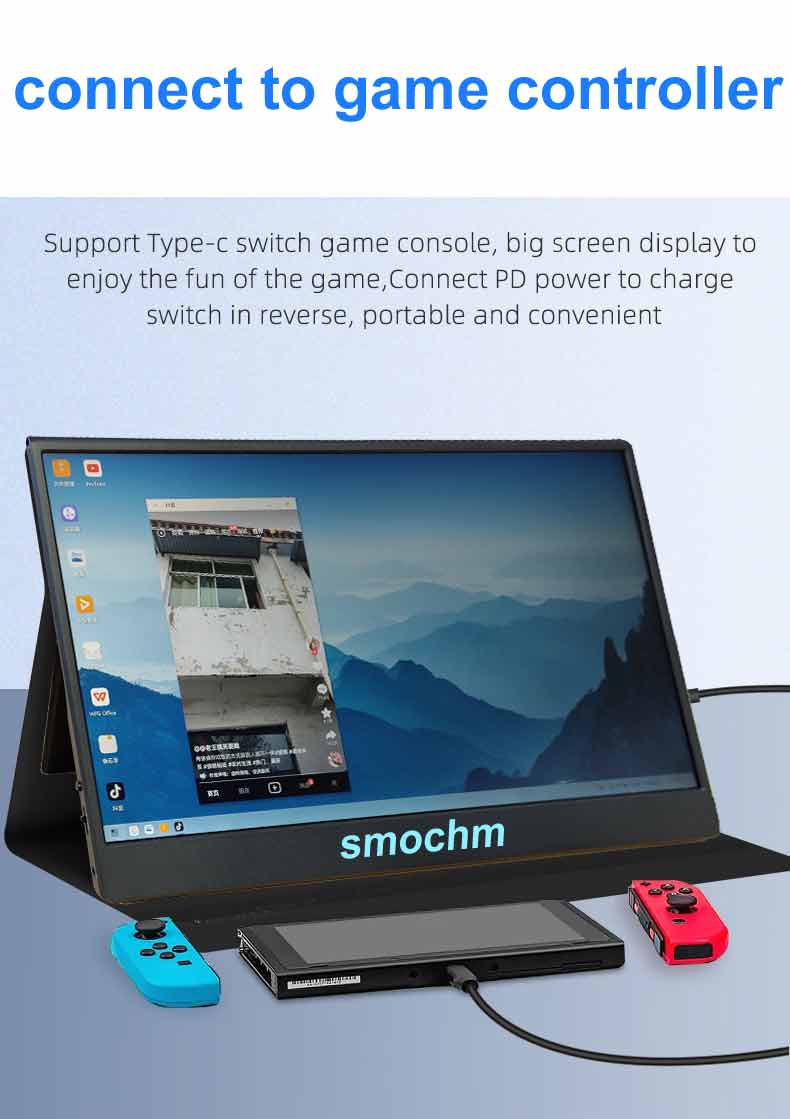

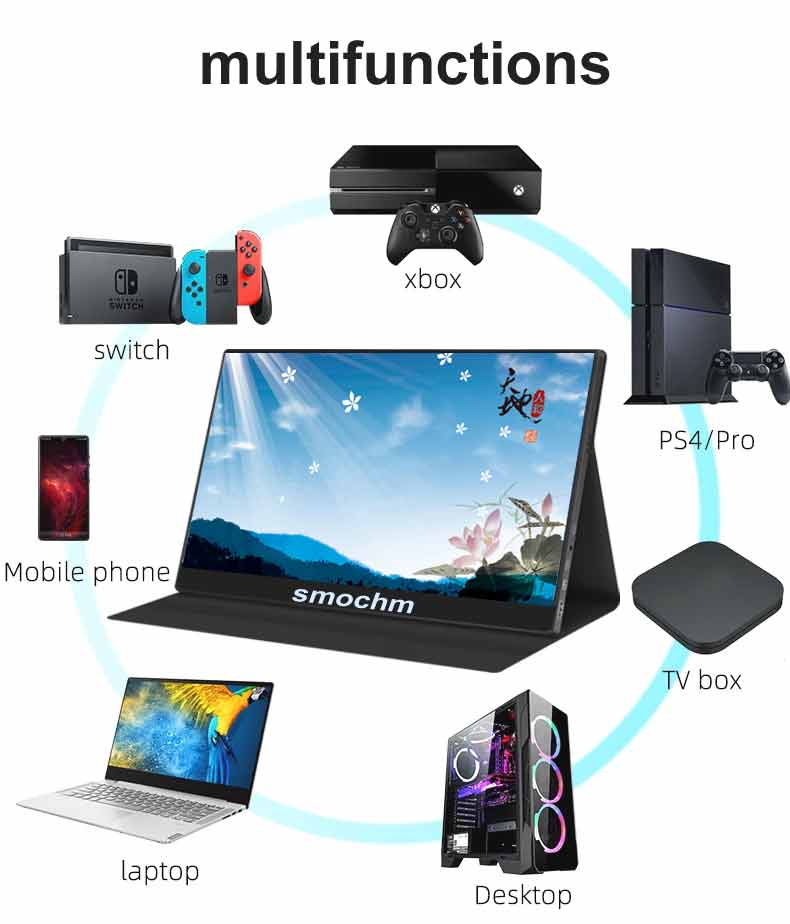

this smochm portable monitor screen can connect to smart phone, laptop, desktop and the gameing device, instantly doubling your work space. Or while traveling, connect it to your phone and enjoy a private cinematic audio-visual feast. All this becomes readily accessible thanks to its portability and ultra-wide viewing angle.
The Smochm portable monitor display also features an intuitive OSD language function, support multi-languages, making your operations simple and straightforward, even for tech beginners. And with built-in stereo speakers, it adds a rich layer to your audio-visual experience.
This smochm portable monitor display is more than just a display; it’s a powerful assistant for mobile office work and an intimate companion for leisure entertainment. Anytime, anywhere, as long as you’re willing, it can open up a broader world for you. This is the Smochm portable display—a compact device with undeniably great capabilities. Let’s unlock wider horizons and explore more exciting worlds together!
smochm portable monitor display Parameter

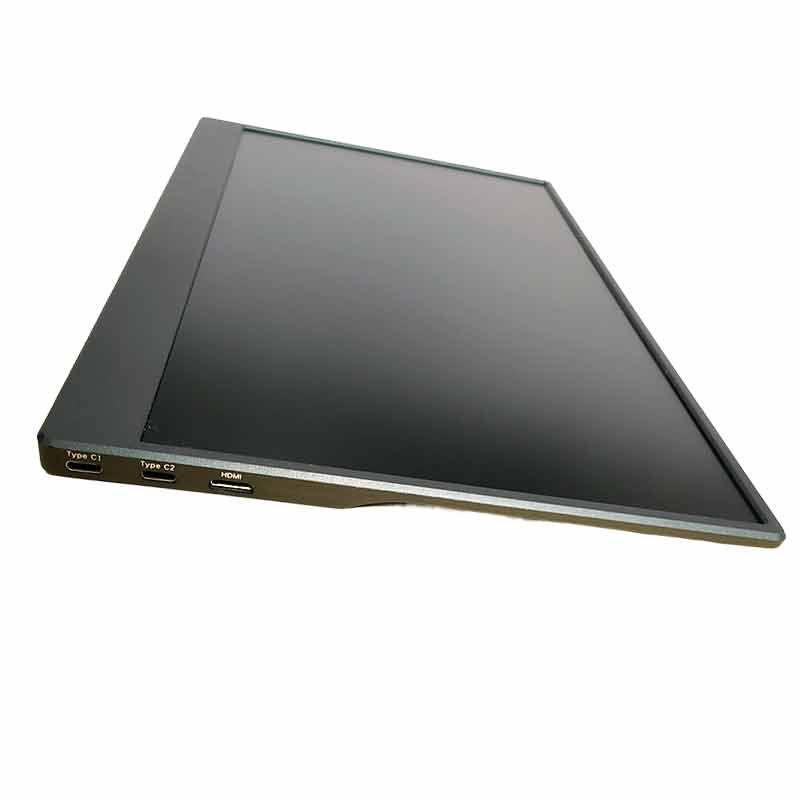

-support the mini HDMI port data transmission.
-support TYPEC port DisplayPort Alt Mode.
-support USB HUB function, through the keyboard, mouse and other accessories.
-support 178 ° ultra wide Angle of view.
-a variety of alternative OSD language.
-motherboard software support online updates.
-built-in two speakers make more clear and loud voice.
more knowledge about portable monitor click here
|
Model Name
|
SM-PM-156A
|
|
Description
|
15.6inch Ultra Narrow Frame Portable Monitor
|
|
Panel Display Size
|
15.6inch
|
|
Panel Surface
|
Anti-Glare,Hard coating
|
|
Panel Type
|
ADS-IPS
|
|
Resolution (H x V)
|
1920*1080
|
|
Refresh Rate
|
60Hz
|
|
Color
|
262K (6-bit) 45% NTSC,62%SRGB
|
|
Brightness
|
250cd/m2
|
|
Aspect Ratio
|
16:09
|
|
Contrast(Typical)
|
800:1
|
|
View Angles
|
85° /85°/85° /85°
|
|
10-point Multi-touch Function
|
NO
|
|
Thunderbolts Type C Phone MHL Function(Samsung S8 Serie, Huawei Mate Serie, P30 Serie, Smartisan, Oneplus 7Plus etc.)
|
Support
|
|
Thunderbolts Type C Connection (Nintendo Switch, Macbook Pro, iMac etc.)
|
Support
|
|
HDMI-Compatible Connection(PS4/PS5/Xbox/TV-box/Digital camera/PC/Laptop etc.)
|
Support
|
|
Adaptive Sync (freesync)
|
TYPE-C 3.1 1920*1080P@60hz
|
|
Adaptive Sync (freesync)
|
HDMI 1.4 1920*1080P@60hz
|
|
HDCP
|
1.4
|
|
HDR
|
HDR 10
|
|
Low Blue Light Mode
|
Support
|
|
Display Color Option
|
WARM/COOL/USER
|
|
Display Mode
|
STANDARD/GAME/MOVIE/TEXT/FPS/RTS
|
|
Mini HDMI
|
HDMI 1.4 1920*1080 60Hz
|
|
Type C Data
|
TYPE-C 3.1 1920*1080 60Hz
|
|
Type C PD
|
PD Protocol Charge
|
|
Micro USB
|
NO
|
|
3.5mm Earphone Port
|
YES
|
|
Speaker
|
8Ω2w*2
|
|
VESA Hole
|
NA
|
|
Front Control
|
Power On/Off,Menu,Up,Down
|
|
OSD Display Language
|
ENGLISH, ESPANOL, Japanese, FRANÇAIS, PORTUGUES, 한국어, DEUTSCH, TURKCE, Chinese, POLSKI, ITALIANO, NEDERLANDS
|
|
Consumption(Max)
|
15W
|
|
Consumption(Typical)
|
10W
|
|
Consumption(Sand by)
|
0.5W
|
|
Consumption(Power off)
|
0
|
|
AC Power Range
|
5-20V; 1.5A-3A
|
|
Power Indicator Light (ON)
|
Blue Light
|
|
Power Indicator Light (stand by)
|
Red Light
|
|
Power Indicator Light (OFF)
|
NA
|
|
Temperature
|
0℃ ~ 50℃
|
|
Humidity
|
20% ~ 80%
|
