Portable Monitor 24PM156 Features

Application for portable monitor：

In this era of information overload, our lives and work are ceaselessly in pursuit of efficiency and convenience. The Smochm portable display is a technological masterpiece created to cater to this demand. It effortlessly extends your computer and smartphone screens via HDMI and Type-C cables, making work presentations more expansive and gaming experiences more immersive.

Imagine in a corner of a café， you gently unfold this screen and connect it to your laptop, instantly doubling your workspace. Or while traveling, connect it to your phone and indulge in a private cinema-like audio-visual feast. All this becomes within easy reach thanks to its portability and ultra-wide viewing angle.

The Smochm portable display also features an intuitive OSD language function, simplifying your operations so that even tech beginners can easily grasp it. And with built-in stereo speakers, it adds a rich layer to your audio-visual experience.

This is more than just a display; it’s a dependable aide for mobile office work and an intimate companion for leisure entertainment. Anytime, anywhere, as long as you’re willing, it can open up a broader world for you. This is the Smochm portable display—a compact device with undeniably great capabilities. Let’s embark together on a journey to unlock wider horizons and discover more exciting worlds!

features：

-support the mini HDMI port data transmission.

-support TYPEC port DisplayPort Alt Mode.

-support USB HUB function, through the keyboard, mouse and other accessories.

-support 178 ° ultra wide Angle of view.

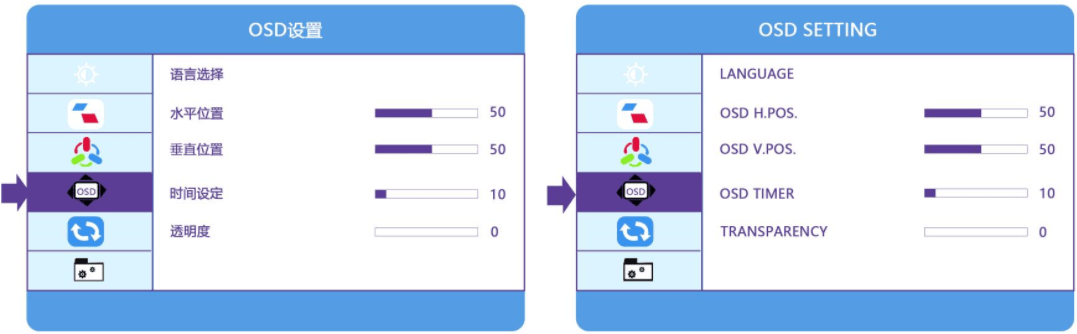

-a variety of alternative OSD language.

-motherboard software support online updates.

-built-in two speakers make more clear and loud voice.

product Specifications

Appearance:

Parameters for portable monitor 24PM156

产品名称 Name	便携显示器 Portable Moniton	整机尺寸 Size	355x226x5.5-11.5mm
屏幕尺寸 Screen size	15.6英寸 15.6-inch	像素 Pixels	16.7M
屏幕比例Screen ratio	16:9	像素间距 pixel pitch	179.25(H)*179.25(V) um
产品重量 Weight	735g	分辨率 resolution	1920*1080
包装重量 Packing weight	1460g	刷新频率 refresh rate	60Hz
屏幕类型 screen type	IPS屏	亮度 brightness	220cd/㎡
触摸 Touch	options: 非触屏, 10点触摸 options：None touch， 10 points touch	对比度 contrast	1000：1
色域 color gamut	45%RGB	显示颜色 color	1.06B(8 bit+FRC)
可视角度 viewing angle	178°	扬声器 speaker	双扬声器 speakerx2
输出端口 output port	3.5mm耳机口 3.5mm headphone hole	输入端口 input port	miniHDMI，Type-C*2
适配器 adapter	5V3A

Note: The above data are related to objective factors such as measuring tools, environment, personnel, etc., and errors may occur,If errors are norma phenomenon, please refer to the actual measurement. If the hardware parameters are updated and changed, and the above parameter. information has not been updated in time, please refer to the actual product received.

Type C smart phone supports：

华为huawei	Mate 10, Mate10Pro, Mate 20, Mate 20Pro, Mate 20X, Mate RS, P20 Pro, Mate 20RS, Mate 30,P20,P20 RS, P30, P30 Pro, P40
荣耀glory	荣耀Note 10, 荣耀V20
三星 samsung	S8,S8+,S9,S9+,S10,S10+,S10e,Note8,Note9,.Note10,Note10+
华硕asus	ROG系列游戏手机，ROG系列游戏手机2、7Pro
索尼SONY	XPeria1(J9110)/XPeria5/XPeria XZ3
诺基亚nokia	Nokia 9 PureView	HTC		UUltra/U19e		OPPO	R17Pro
ZTE中兴	AXON 9 Pro	黑鲨		黑鲨二代、黑鲨三代		LG	G5
坚果nuts	坚果R1/坚果Pro 2S		一加		7/7Pro/7T/8/8Pro
雷蛇razer	Raze Phone /Razer Phone2

normally, the latest launched smart phone will support to connect this portable monitor display via type-c interface.

Interface & Button introduction：

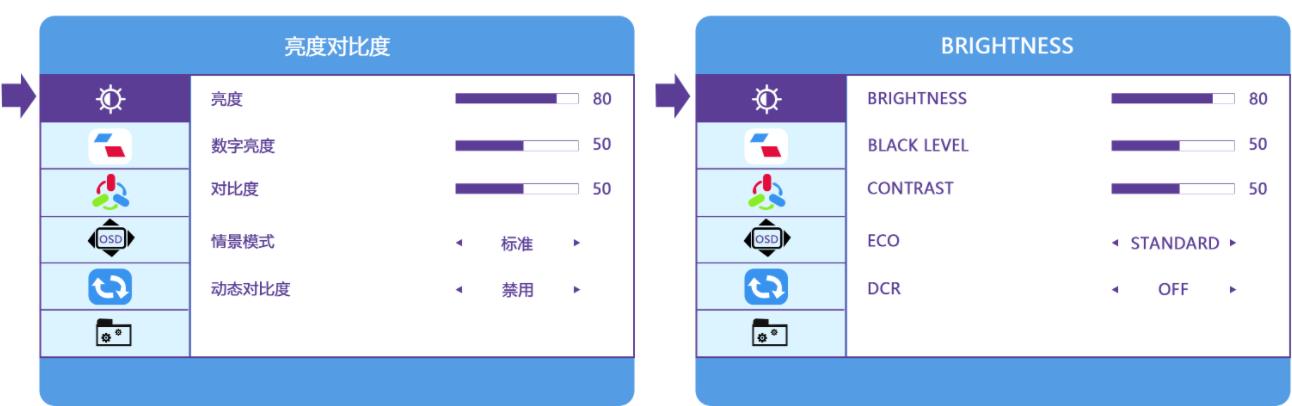

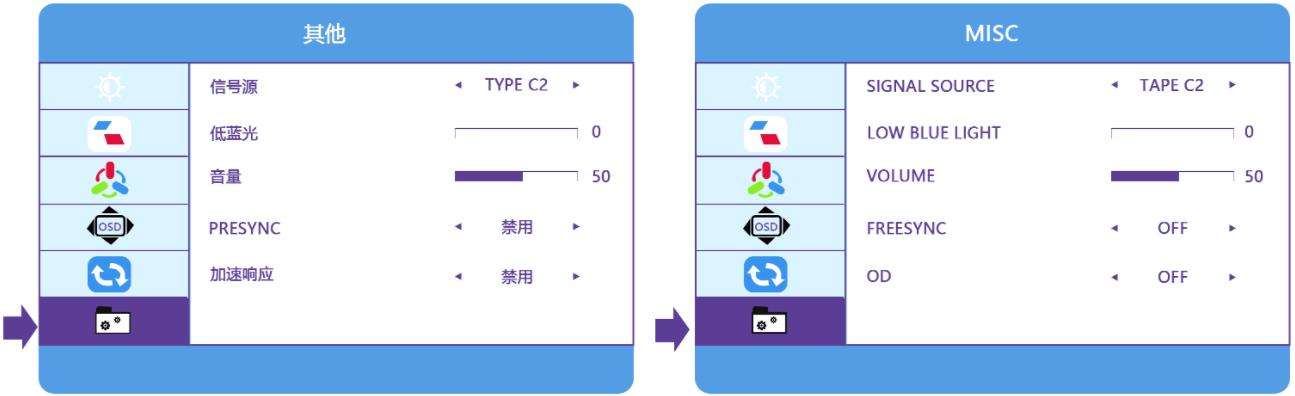

拨轮按钮/Dial Button

01)、未打开菜单时:/When the menu isn’t open:

按下: 打开菜单; 上拨: 调节亮度; 下拨: 调节音量

Press:memu; Dial up: brightness; Dial down: volume

02)、打开菜单时:/When opening the menu:

上拨: 向上调节，下拨: 向下调节，按下: 确定

Dial up: adjust up, Dial down: adjust down,Press down: OK

电源开关按钮/Power Button

01)、长按3秒以上:开机/关机

Long press for more than 3 seconds: Turn on /off Power

02)、短按:返回上一级菜单

Short press: Go back one layer in menu

Type-C口(支持PD协议)/Type-C Port (Support PD Protocol)

可数据传输、视频输出、供电

At the same time, it has datatransmission, video output, fast charging functions.

Operation guide:

This portable monitor supports to connect type-c, HDMI for video and audio transportation, some computer and laptop or smart phone can output enough current to make this monitor work normally, some can’t support enough power, if not, then please connect the type-c interface to the power adaptor or a usb cable. the below are the details :
